Clean Cut flame retardant expandable braided sleeve Techflex

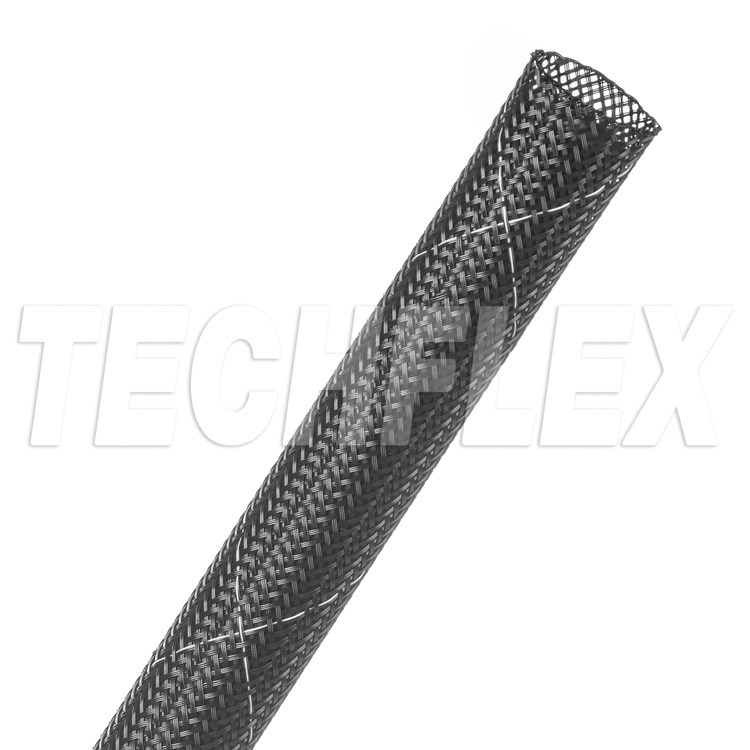

CLEAN CUT FLAME RETARDANT

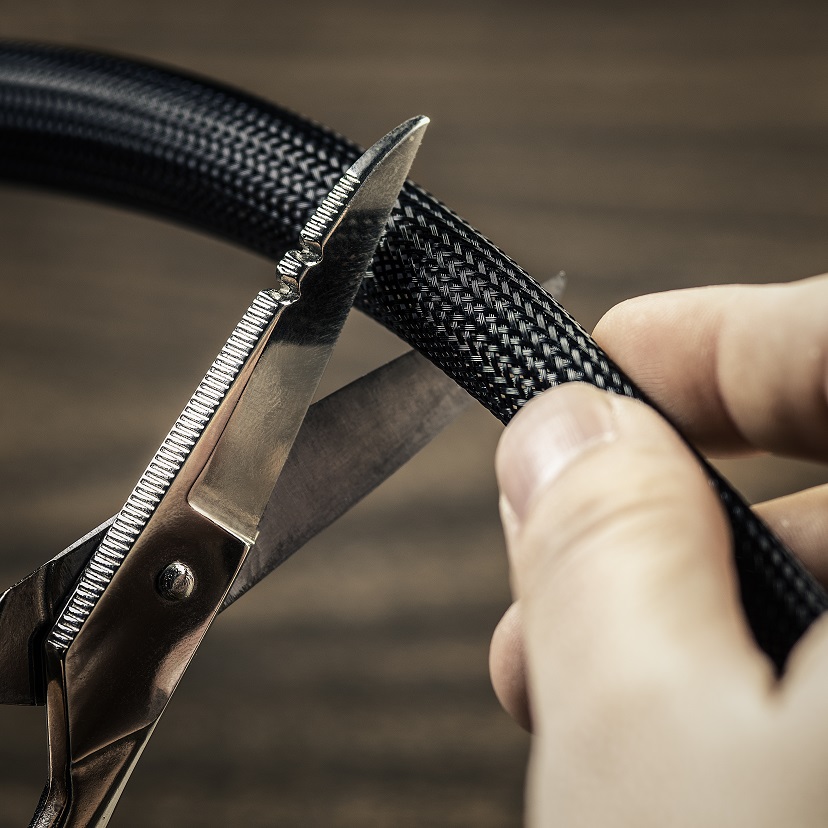

CLEAN CUT FLAME RETARDANT (CC) has all the same qualities that make standard CC so easy to cut and install, with the added advantage of a flame inhibitor to provide an extra level of safety in certain applications.
Under normal conditions, Clean Cut FR will quickly self-extinguish and minimise flame spread and incidental damage to surrounding components.

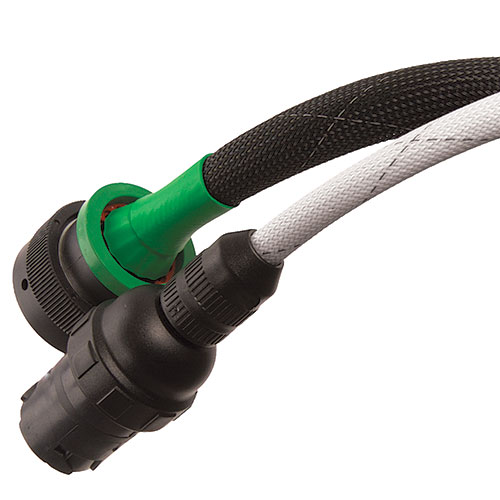

The combination of flame retardance, ease of installation and nearly complete coverage makes Clean Cut FR an ideal solution for many industrial and advanced engineering applications.

FEATURES

VW-1, Mil-202 Approved

Expands for Easy Installation

Halogen Free

Cuts and abrasion resistant




SPECIFICATIONS
Download our Clean Cut Flame Retardant Specifications PDF



Overexpanded



Pto 1

Pto 2

Pto 4

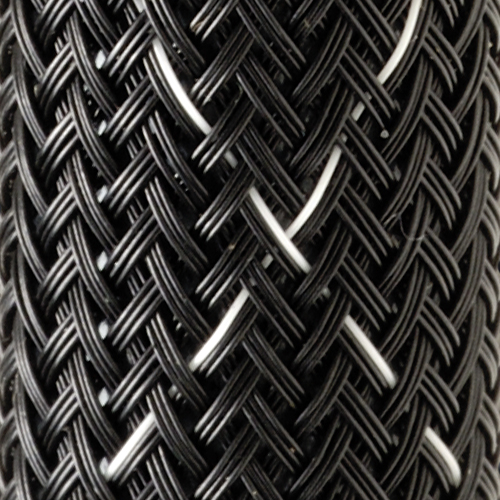

Standard Colour: Black with White Tracer, White with Black Tracer

Nominal
Diameter		 Part #  Expansion Range Bulk Spool  Mini Spool BULK PRICE AND AVAILABILITY ON APPLICATION
mm   Min. mm  Max. mm m m
3 CCF0.13 3 6 300 65  CONTACT US
6 CCF0.25 4 11 300  60
10 CCF0.38 5 16 150  38
13 CCF0.50 7 19 150  30
 19 CCF0.75  15  25  75  22
 25 CCF1.00   19  30  75  20
 32 CCF1.25  25  38  75  15
 38 CCF1.50   32  50  60  12
