Flexo Clean Cut



CLEAN CUT

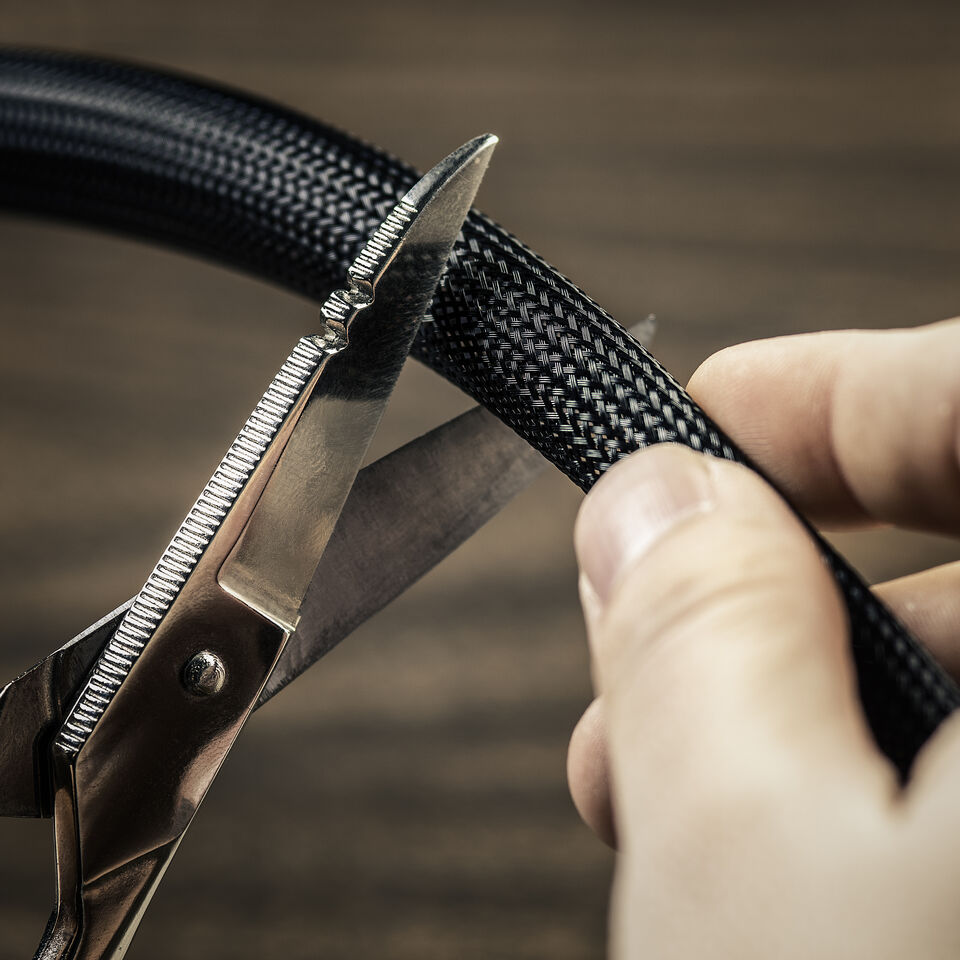

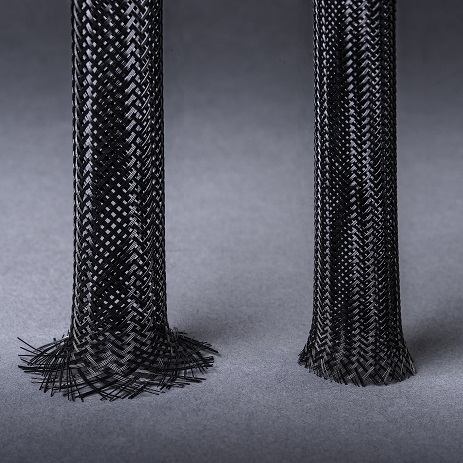

FLEXO CLEAN CUT is ideal for field installers and other applications where access to a hot knife is unobtainable. The fray-resistant properties allow expansion at the cut end without unraveling. When cut with a hot knife, Clean Cut produces a virtually frayless end, Clean Cut expands up to 150% to slip over connectors and plugs.  Halogen Free.  FMVSS 302 and FAR 25 approved. No hot knife necessary, CUTS WITH SCISSORS





FEATURES

Resists Fraying when Cut with Scissors

High Abrasion Resistance

Increased Braid Density for Fuller Coverage

Temperature Range -70 to 125C

Halogen Free.






SPECIFICATIONS
Download our Flexo CleanCut Specifications PDF



Overexpanded



Pto 1

Pto 2

Pto 4


BUY NOW - select the size and length from the table below

SELECT THE SIZE AND GO TO THE CART BY  CLICKING THE GREEN CELL IN THE SAME ROW
(Price $NZ/m excls GST)
Nominal
Diameter		 Part # Expansion Range Bulk Spool Quantity breaks Prices per m (NZ$)
BUY NOW

mm   Min. mm  Max. mm (m) Black
3 CCP0.13 2 6 300 Price for <76
Price for   76+
Price for   150+
Price for   300+		 $2.90 / m
$2.15 / m
$1.95 / m
$1.75 / m		 BUY CCP0.13BK
(3mm)
6 CCP0.25 3 11 300 Price for <76
Price for   76+
Price for   150+
Price for   300+		 $3.40 / m
$2.55 / m
$2.30 / m
$2.05 / m		 BUY CCP0.25BK
(6mm)
9 CCP0.38 5 16 150 Price for <38
Price for   38+
Price for   76+
Price for   150+		 $5.40 / m
$4.05 / m
$3.65 / m
$3.25 / m		 BUY CCP0.38BK
(9mm)
12 CCP0.50 6 19 150 Price for <38
Price for   38+
Price for   76+
Price for   150+		 $5.90 / m
$4.45 / m
$3.95 / m
$3.55 / m		 BUY CCP0.50BK
(12mm)
19 CCP0.75 12 32 76 Price for <19
Price for   20+
Price for   38+
Price for   76+		 $7.45 / m
$5.60 / m
$5.00 / m
$4.50 / m		 BUY CCP0.75BK
(19mm)
25 CCP1.00 16 40 76 Price for <19
Price for   20+
Price for   38+
Price for   76+		 $8.60 / m
$6.45 / m
$5.75 / m
$5.15 / m		 BUY CCP1.00BK
(25mm)
32 CCP1.25 19 44 76 Price for <19
Price for   20+
Price for   38+
Price for   76+		 $10.55 / m
$7.90 / m
$7.05 / m
$6.35 / m		 BUY CCP1.25BK
(32mm)
38 CCP1.50 25 64 60 Price for <15
Price for   15+
Price for   30+
Price for   60+		 $13.50 / m
$10.15 / m
$9.05 / m
$8.10 / m		 BUY CCP1.50BK
(38mm)
44 CCP1.70 38 54 60 Price for <15
Price for   15+
Price for   30+
Price for   60+		 $16.55 / m
$12.40 / m
$11.10 / m
$9.95 / m		 BUY CCP1.75BK
(44mm)
